Mgn_003

#magnet #experiment #HTS #dv_publish

File

value

Experiment: FF001
Nickname: Paulina
length_m: 10
Field_T: 1.57
turns: 141
wind_force: 10 N
tape: THEVA TPL5121 ID200059
Bore material: Copper (workshop)
Bore ID: 8 mm
Bore OD: 10 mm
Leads: 2
Quench: 1000A
date: 2025-02-06
raw data: https://drive.google.com/drive/folders/1Yi2EOZ9YaBRFVTnSL_1Bm2I00-rhkmAF?usp=sharing003
tags:
- magnet
- experiment
- HTS
- dv_publish
dg-publish: true

Remarks

Some sticking of leads during baking
First test did not work due to bad connection. Retry when the chamber warms up.

Data

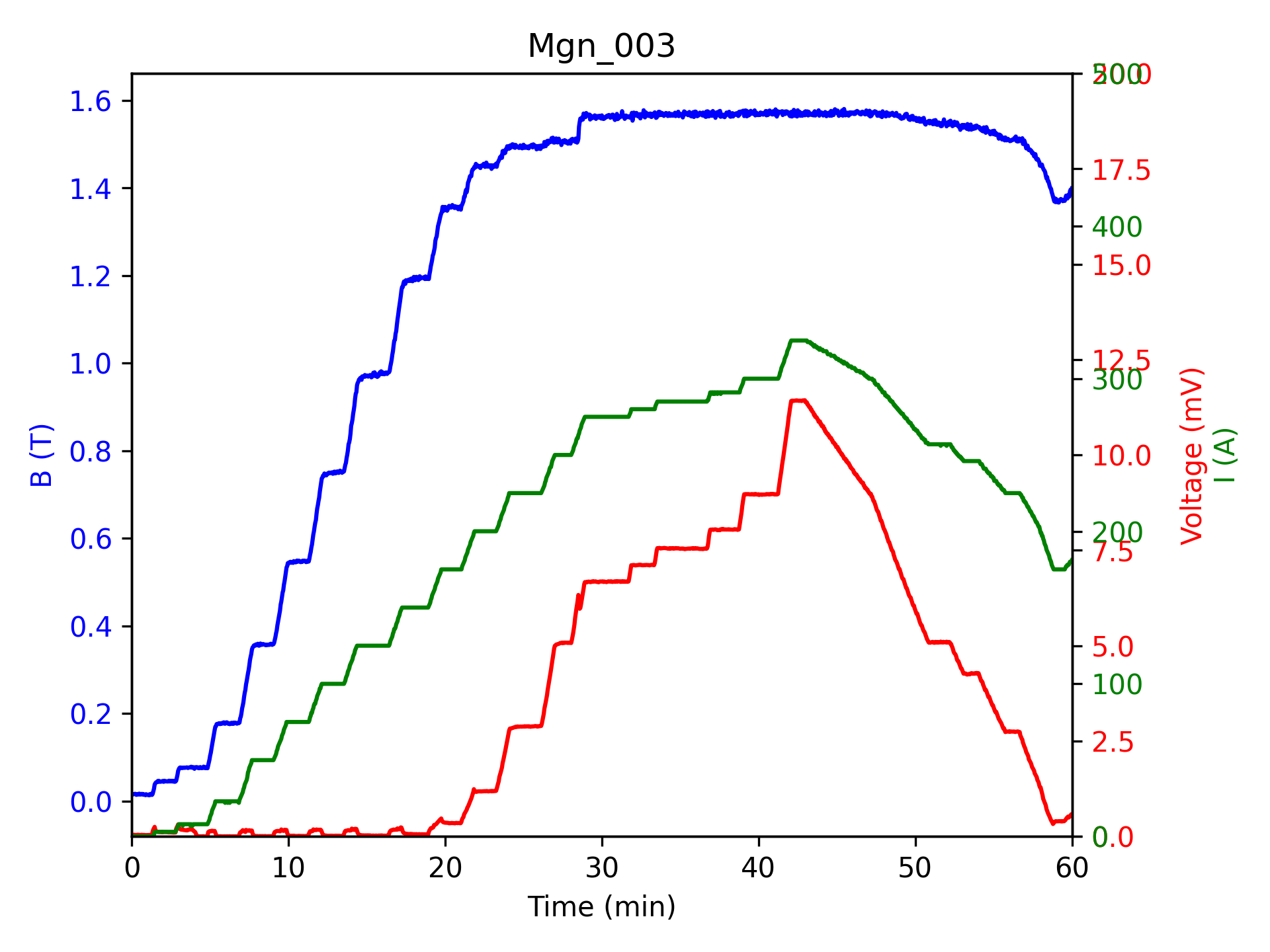

Simple charge

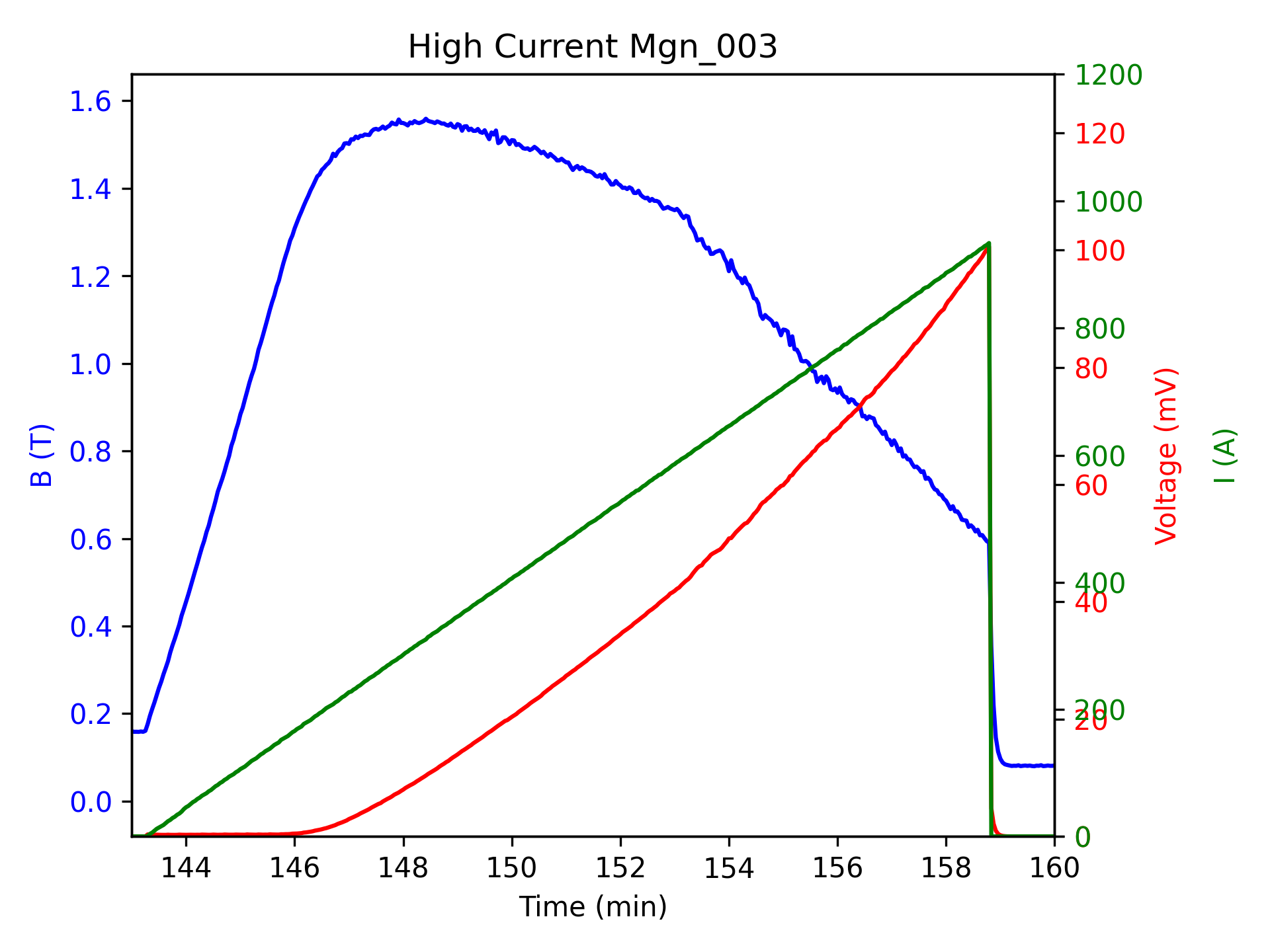

High current profile
High Current Mgn_003.png
