Mgn_002

#magnet #experiment #HTS #dv_publish

File

value

Experiment: FF001
Nickname: Anna
length_m: 10
Bore ID: 8 mm
Bore OD: 10 mm
tape: THEVA TPL5121 ID200059
turns: 148
wind_force: 10 N
Bore material: Copper (workshop)
Field_T: 1.53
Leads: 2
date: 2025-02-05
raw data: https://drive.google.com/drive/folders/1Yi2EOZ9YaBRFVTnSL_1Bm2I00-rhkmAF?usp=sharing002
tags:
- magnet
- experiment
- HTS
- dv_publish
dg-publish: true

Remarks

little solder on the mandrel
Some leads delaminating
Noisy voltage readings probably bad connection

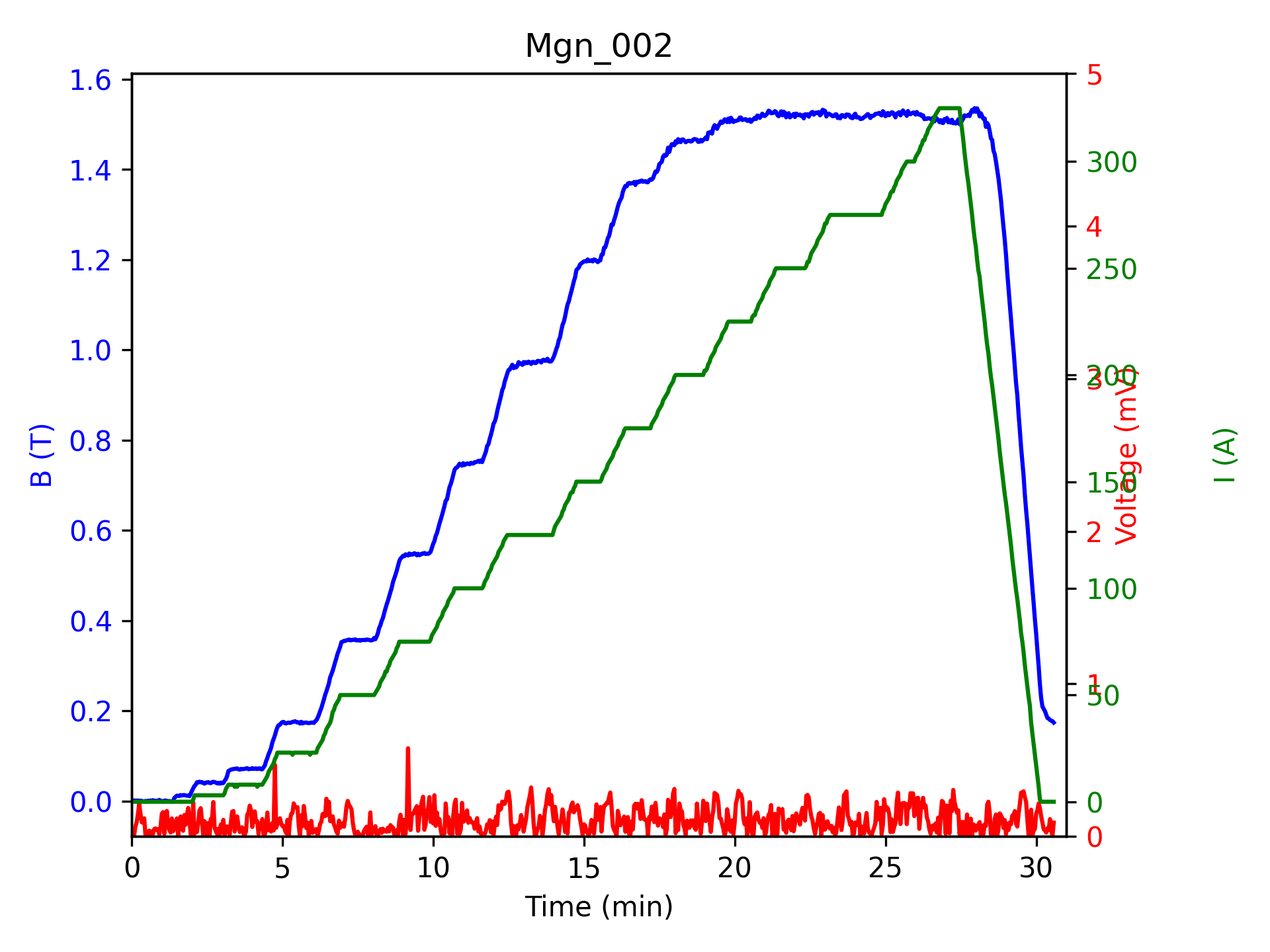

Data

Raw Data

https://drive.google.com/open?id=1Yi7nU1nYRIyJUPOLs9uq79OYlhlxArsw&usp=drive_fs
