Mgn_001

#magnet #experiment #HTS #dv_publish

File

value

Experiment: FF001
magnet_name: Mgn_001
Nickname: Niamh
length_m: 10
Field_T: 1.50
tape: THEVA TPL5121 ID200059
turns: 145
wind_force: 10 N
Bore material: Copper (workshop)
Bore ID: 8 mm
Bore OD: 10 mm
Leads: 2
date: 2025-02-04
raw data: https://drive.google.com/drive/folders/1Yi2EOZ9YaBRFVTnSL_1Bm2I00-rhkmAF?usp=sharing001
tags:
- magnet
- experiment
- HTS
- dv_publish
dg-publish: true

Magnet Build

Sudden unwinding due to loose mandrel. Next time, turn mandrel anti-clockwise to avoid de-spooling
Used hose clamp to bake

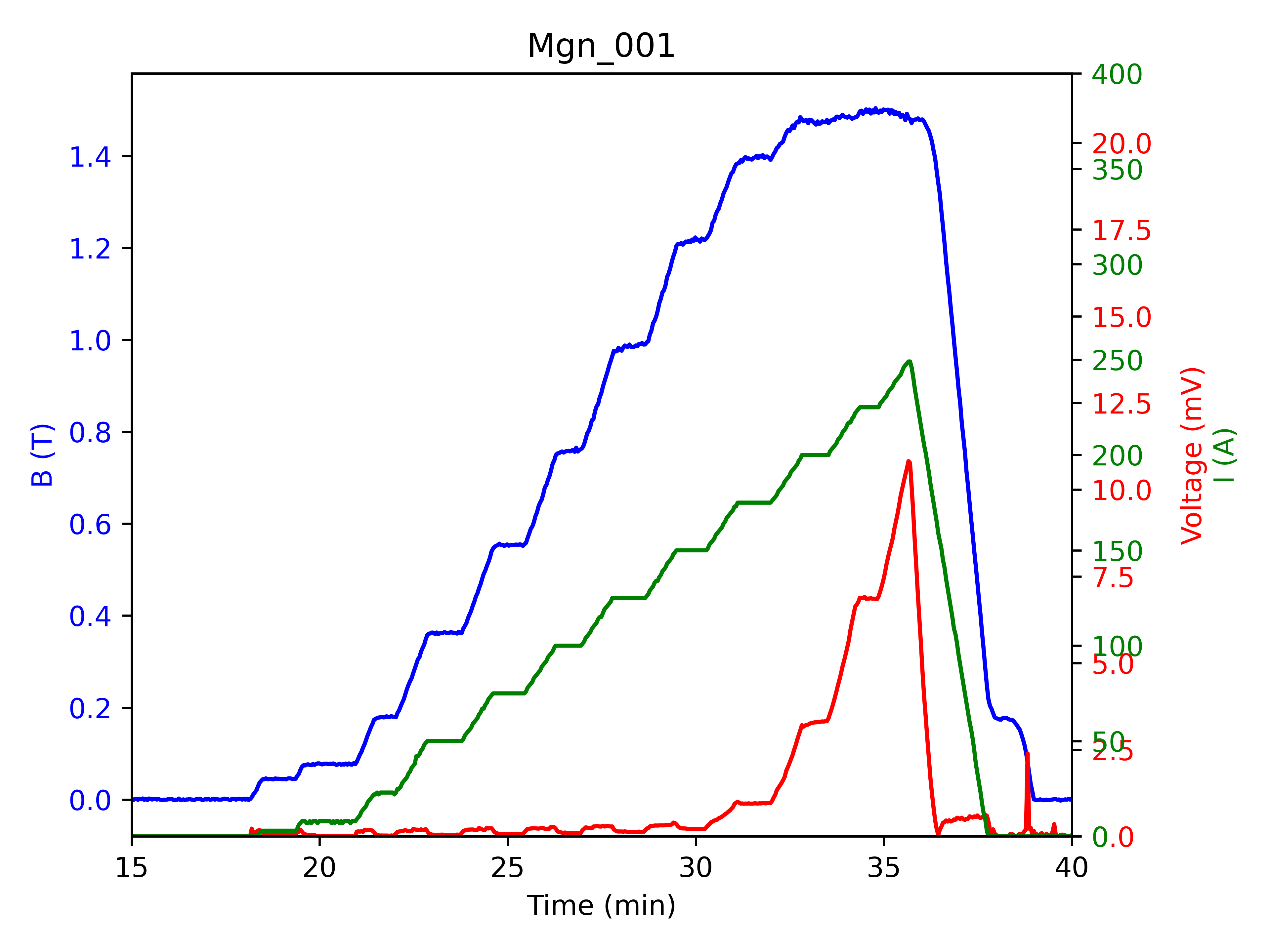

Magnet test

Mgn_001 1.png

Raw data

https://drive.google.com/open?id=1Yi4OTBU4J60U7fwovihnIJR9JmQt-afn&usp=drive_fs
